it is thanks to these advantages that the ace series has become one of the best-selling camera series and meets the application needs of thousands of users. The ace series has more than 130 camera models and is one of the industrial image processing camera series with the richest product lines on the market.
Basler ace series
Compact design, affordable and effective
This series not only has excellent quality and outstanding performance, but also is economical.
The compact camera housing is available in two cross-section sizes of 29 mm x 29 mm and 30 x 40 mm:
it is thanks to these advantages that the ace series has become one of the best-selling camera series and meets the application needs of thousands of users.
The ace series has more than 130 camera models and is one of the industrial image processing camera series with the richest product lines on the market.
Basler ace cameras are available in a variety of resolutions, frame rates, interface standards, and chips from all leading manufacturers.
A rich product selection, coupled with a wide range of applicable functions, makes all ace camera models suitable for numerous vision applications.
In order to facilitate customers to purchase various ace models and more clearly distinguish the functions of each model,
the ace series products are now divided into four product lines: ace Lite, ace Classic, ace U and ace L.
Advantages of Basler ace products include:
More than 130 camera models with resolutions ranging from VGA to 20 megapixels and frame rates up to 751fps
Rich chip product lines: CCD, CMOS and NIR chips
Interface: USB 3.0, GigE and Camera Link
Single wire solution: GigE supporting PoE, Camera Link supporting PoCL, USB 3.0
I/O flexibility minimizes latency and jitter times, helping you achieve excellent accuracy in your applications
Widely applicable firmware features
Excellent value for money
USB3 Vision, GigE Vision and Camera Link standards provide superior stability and flexibility
Basler’s pylon camera software suite makes camera integration easy
aceClassic

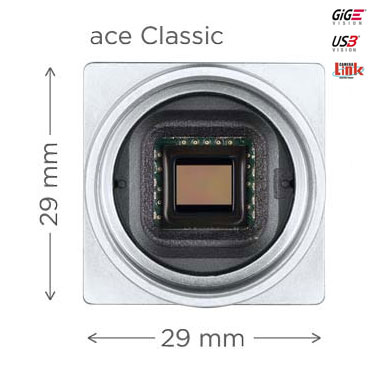

The first ace camera models have a ground-breaking 29 mm x 29 mm format, similar in size to analog cameras.
Today, this "sugar cube-sized" mini camera has gained wide recognition in the market.
It is worth mentioning that this specification is available on all ace Classic and ace U models.
Overview of ace Classic’s highlighted features:
Rich chip selection, including CMOS chips from ams, e2V and onsemi (MT product line), as well as CCD chips from Sony
Rich interface choices: GigE, USB 3.0 and CameraLink
Excellent value for money
Camera model Horizontal/vertical resolution Photosensitive chip Frame rate Black and white/color interface
acA1280-60gc1280 px x 1024 pxEV76C56060 fpsColorGigE
acA1300-60gc1280 px x 1024 pxEV76C56060 fpsColorGigE
acA1300-60gmNIR1280 px x 1024 pxEV76C66160 fpsMonoGigE
acA1300-60gmNIR (CS-Mount)1280 px x 1024 pxEV76C66160 fpsMonoGigE
acA1300-60gc (CS-Mount)1280 px x 1024 pxEV76C56060 fpsColorGigE
acA1280-60gm1282 px x 1026 pxEV76C56060 fpsMonoGigE
acA1300-60gm1282 px x 1026 pxEV76C56060 fpsMonoGigE
acA1300-60gm (CS-Mount)1282 px x 1026 pxEV76C56060 fpsMonoGigE
acA1600-60gc1600 px x 1200 pxEV76C57060 fpsColorGigE
acA1600-60gc (CS-Mount)1600 px x 1200 pxEV76C57060 fpsColorGigE
acA1600-60gm1602 px x 1202 pxEV76C57060 fpsMonoGigE
acA1600-20gc1624 px x 1234 pxICX27420 fpsColorGigE
acA1600-20uc1626 px x 1234 pxICX27420 fpsColorUSB 3.0
acA1920-25gc1920 px x 1080 pxMT9P03125 fpsColorGigE
acA1920-25gm1920 px x 1080 pxMT9P03125 fpsMonoGigE
acA1920-25gc (CS-Mount)1920 px x 1080 pxMT9P03125 fpsColorGigE
acA1920-25uc1920 px x 1080 pxMT9P03126 fpsColorUSB 3.0
acA1920-25um1920 px x 1080 pxMT9P03126 fpsMonoUSB 3.0
acA2000-165uc2040 px x 1086 pxCMV2000165 fpsColorUSB 3.0
acA2040-90uc2040 px x 2046 pxCMV400090 fpsColorUSB 3.0
acA2000-50gc2046 px x 1086 pxCMV200050 fpsColorGigE
acA2000-50gc (CS-Mount)2046 px x 1086 pxCMV200050 fpsColorGigE
acA2000-340kc2046 px x 1086 pxCMV2000340 fpsColorCamera Link
acA2040-25gc2046 px x 2046 pxCMV400025 fpsColorGigE
acA2040-180kc2046 px x 2046 pxCMV4000180 fpsColorCamera Link
acA2000-50gm2048 px x 1088 pxCMV200050 fpsMonoGigE
acA2000-165um2048 px x 1088 pxCMV2000165 fpsMonoUSB 3.0
acA2000-340km2048 px x 1088 pxCMV2000340 fpsMonoCamera Link
acA2040-25gm2048 px x 2048 pxCMV400025 fpsMonoGigE
acA2040-25gmNIR2048 px x 2048 pxCMV4000 NIR-enhanced25 fpsMonoGigE
acA2040-90um2048 px x 2048 pxCMV400090 fpsMonoUSB 3.0
acA2040-90umNIR2048 px x 2048 pxCMV4000 NIR-enhanced90 fpsMonoUSB 3.0
acA2040-180km2048 px x 2048 pxCMV4000180 fpsMonoCamera Link
acA2040-180kmNIR2048 px x 2048 pxCMV4000 NIR-enhanced180 fpsMonoCamera Link
acA2500-14gc2590 px x 1942 pxMT9P03114 fpsColorGigE
acA2500-14uc2590 px x 1942 pxMT9P03114 fpsColorUSB 3.0
acA2500-14gc (CS-Mount)2590 px x 1942 pxMT9P03114 fpsColorGigE
acA2500-14uc (CS-Mount)2590 px x 1942 pxMT9P03114 fpsColorUSB 3.0
acA2500-14gm2592 px x 1944 pxMT9P03114 fpsMonoGigE
acA2500-14um2592 px x 1944 pxMT9P03114 fpsMonoUSB 3.0
acA2500-14gm (CS-Mount)2592 px x 1944 pxMT9P03114 fpsMonoGigE
acA2500-14um (CS-Mount)2592 px x 1944 pxMT9P03114 fpsMonoUSB 3.0
acA3800-10gc3840 px x 2748 pxMT9J00310 fpsColorGigE
acA3800-10gm3840 px x 2748 pxMT9J00310 fpsMonoGigE
acA3800-14uc3840 px x 2748 pxMT9J00314 fpsColorUSB 3.0
acA3800-14um3840 px x 2748 pxMT9J00314 fpsMonoUSB 3.0
