ABB ACS150-01E-02A4-2 68581940

ABB ACS150-01E-02A4-2 68581940,ABB ACS150-01E-02A4-2,ABB 68581940,ACS150-01E-02A4-2 68581940

ACS150-01E-02A4-2

General Information

    • Global Commercial Alias:
    • ACS150-01E-02A4-2
    • Product ID:
    • 68581940
    • ABB Type Designation:
    • ACS150-01E-02A4-2
    • EAN:
    • 6410038079307
    • Catalog Description:
    • ACS150-01E-02A4-2 Pn 0,37kW, I2n 2,4A IP20
    • Long Description:
    • The ACS150 drives are designed to be incorporated into a wide variety of machines such as mixers, conveyors, fans or pumps. The ACS150 drives have an integrated user panel, potentiometer and a variety of features such as pre-defined connection macros, making drive selection and configuration easy. With an optional FlashDrop tool these drives can be configured quickly in volume.

Categories

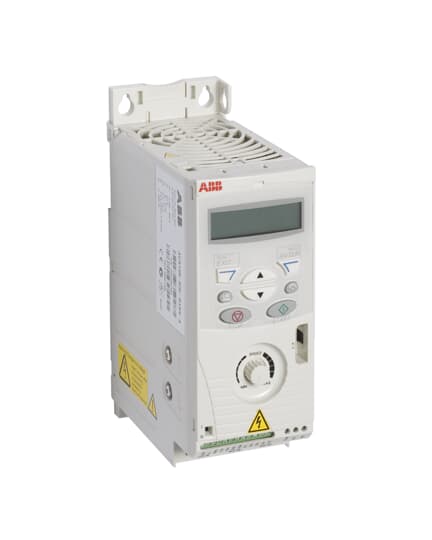

  • ACS150-01E-02A4-2 - image 0

Ordering

    • Country of Origin:
    • China (CN)
      Finland (FI)
    • Customs Tariff Number:
    • 85044085
    • Invoice Description:
    • ACS150-01E-02A4-2 Pn 0,37kW, I2n 2,4A IP20
    • Made To Order:
    • No
    • Minimum Order Quantity:
    • 1 piece
    • Order Multiple:
    • 1 piece
    • Quote Only:
    • No
    • Selling Unit of Measure:
    • piece

Dimensions

    • Product Net Weight:
    • 1.2 kg
    • Product Net Depth / Length:
    • 142 mm
    • Product Net Height:
    • 239 mm
    • Product Net Width:
    • 70 mm
    • Package Level 1 Depth / Length:
    • 343 mm
    • Package Level 1 Height:
    • 130 mm
    • Package Level 1 Width:
    • 217 mm
    • Package Level 1 Units:
    • 1 carton

Technical

    • Number of Phases:
    • 1
    • Degree of Protection:
    • IP20
    • Enclosure Type NEMA:
    • Open Type
    • Frequency (f):
    • 50/60 Hz
    • Frame Size:
    • R1
    • Input Voltage (Uin):
    • 200 ... 240 V
    • Mounting Type:
    • Module for cabinet building
    • Number of Hardware Interfaces:
    • Industrial Ethernet 0
      PROFINET 0
      RS-232 0
      RS-422 0
      RS-485 0
      Serial TTY 0
      USB 0
      Parallel 0
      Other 1
    • Includes:
    • With control unit
      Without optical interface
      With PC connection
    • Analog Inputs:
    • 1
    • Analog Outputs:
    • 0
    • Number of Digital In/Outputs:
    • 5/0
    • Output Current, Light-Overload Use (ILD):
    • 2.4 A
    • Output Current, Normal Use (In):
    • 2.4 A
    • Output Power, Light-Overload Use (PLD):
    • 0.4 kW
    • Output Power, Normal Use (Pn):
    • 0.37 kW
    • Apparent Power Output:
    • 1.0 kV·A
    • Efficiency Level:
    • IE2
    • Standby Loss:
    • 6 W
    • Complete Drive Module Efficiency (61800-9-2):
    • Operating Point Frequency / CurrentAbsolute LossRelative LossEfficiency
      90 / 100 %29 W3.1 %95.5 %
      50 / 100 %26 W2.7 %93.1 %
      0 / 100 %23 W2.4 %87.7 %
      90 / 50 %23 W2.4 %93.9 %
      50 / 50 %21 W2.2 %90.3 %
      50 / 25 %20 W2.1 %86.4 %
      0 / 50 %20 W2.1 %82.7 %
      0 / 25 %19 W2.0 %76.2 %
    • Temperature Rating:
    • Maximum 40 °C
    • Ecodesign Exemption:
    • Energy efficiency data is not provided for the 1~230 V drives. The drives with one phase input are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781).

Additional Information

    • Product Main Type:
    • ACS150
    • Product Name:
    • Frequency converter

Classifications

    • Product Series:
    • ACS150
    • ETIM 7:
    • EC001857 - Frequency converter =< 1 kV
    • UNSPSC:
    • 39122001

Environmental

    • SCIP:
    • 48b9142c-556f-48b8-b335-7ea8496bc698 Finland (FI)
    • WEEE Category:
    • 5. Small Equipment (No External Dimension More
