Features and Benefits
CO/CPE auto-negotiation reduces configuration time
Supports Link Failure Notification (LFPT), interoperable with Turbo Ring and Turbo Chain
LED indicators simplify troubleshooting
Easily manage your network via web browser, Telnet/serial console, Windows management tools, ABC-01 and MXview
introduce

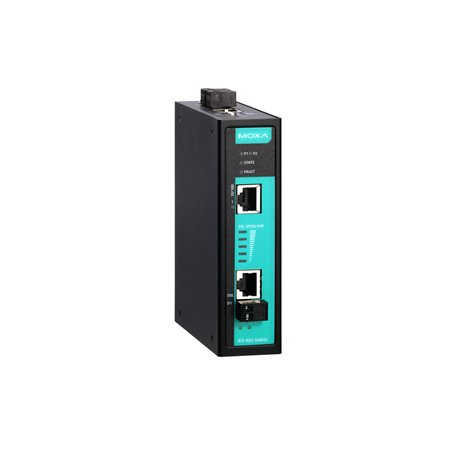

The IEX-402 is an entry-level managed industrial Ethernet extender equipped with 1 10/100BaseT(X) port and 1 DSL port.
Supporting G.SHDSL or VDSL2 standards, this Ethernet extender provides point-to-point extension over twisted pair cables.
This device has a G.SHDSL connection data rate of up to 15.3 Mbps and a transmission distance of up to 8 km;
a VDSL2 connection data rate of up to 100 Mbps and a transmission distance of up to 3 km.
The IEX-402 series is designed for harsh environments. DIN rail mounting,
wide temperature operation (-40 to 75°C) and dual power inputs make it ideal for installation into industrial applications.
To simplify configuration, the IEX-402 is equipped with CO/CPE auto-negotiation.
By factory default, it automatically assigns one of each pair of IEX devices to CPE status.
Additionally, Link Failure Notification (LFP) capabilities and network redundancy interoperability enhance the reliability and accessibility of communications networks.
Troubleshoot quickly and improve user experience with MXview's advanced management and monitoring capabilities, as well as virtual panels.
Other features and benefits
Supports standard G.SHDSL with data transfer rates up to 5.7 Mbps and transmission distance up to 8 km (performance depends on cable quality)
Moxa's exclusive Turbo Speed connection speeds up to 15.3 Mbps
Supports link failure notification (LFP) and fast line change recovery
SNMP v1/v2c/v3 supports different levels of network management
Interoperable with Turbo Ring and Turbo Chain network redundancy
Support Modbus/TCP protocol device management and monitoring
Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
Certified IPv6 Ready
Ethernet interface
10/100BaseT(X) port (RJ45 connector)
1
rate adaptation
Full/half duplex mode
Automatic MDI/MDI-X connection
Combo port, RJ-11 (RJ45 connector) or removable 2-contact terminal block
1
standard
IEEE 802.1p for service levels
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEX-402-VDSL2 Series: ITU G.993.2
IEX-402-SHDSL series: ITU-T G.991.2
Ethernet software features
manage
SNMPv1/v2c/v3, Modbus TCP, Back Pressure Flow Control, DHCP Client, HTTP, LLDP, Syslog, Telnet, TFTP
MIB
MIB-II
On-time service
SNTP
exchange properties
MAC address table size
1K
Packet buffer size
512kb
LED interface
LED indicator
PWR1, PWR2, FAULT, STATE, LINK/ACT, CO/CPE, 10/100 (TP port)
Serial interface
Console port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP switch configuration
Ethernet interface
All models: CO/CPE, SNR/SPEED
IEX-402-VDSL2 Series: STD/INP
IEX-402-SHDSL series: ANNEX B/ANNEX A, STD/TURBO
Power parameters
Power connector
2 removable 2-contact terminal blocks
Input voltage
12/24/48 VDC, 9.6 to 60 VDC
Input Current
IEX-402-SHDSL Series: 0.388 A @ 12 VDC, 0.196 A @ 24 VDC, 0.097 A @ 48 VDC
IEX-402-VDSL2 Series: 0.34 A @ 24 VDC
Overload current protection
support
Reverse connection protection
support
Mechanical properties
Shell
Metal
IP rating
IP30
size
35 x 130 x 105 mm (1.38 x 5.12 x 4.13 inches)
weight
IEX-402-SHDSL Series: 290 g (0.64 lb)
IEX-402-VDSL2 Series: 275 g (0.61 lb)
Install
Rail mounting, rack mounting (with optional kits)
working environment
altitude
2000m
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature model: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
