Area scan camera Basler ace series ace L

Basler ace series

Compact design, affordable and effective

This series not only has excellent quality and outstanding performance,

 but also is economical. The compact camera housing is available in two cross-section sizes of 29 mm x 29 mm and 30 x 40 mm:

 it is thanks to these advantages that the ace series has become one of the best-selling camera series and meets the application needs of thousands of users.

The ace series has more than 130 camera models and is one of the industrial image processing camera series with the richest product lines on the market.

Basler ace cameras are available in a variety of resolutions, frame rates, interface standards, and chips from all leading manufacturers.

A rich product selection, coupled with a wide range of applicable functions, makes all ace camera models suitable for numerous vision applications.

In order to facilitate customers to purchase various ace models and more clearly distinguish the functions of each model,

the ace series products are now divided into four product lines: ace Lite, ace Classic, ace U and ace L.

Advantages of Basler ace products include:

More than 130 camera models with resolutions ranging from VGA to 20 megapixels and frame rates up to 751fps

Rich chip product lines: CCD, CMOS and NIR chips

Interface: USB 3.0, GigE and Camera Link

Single wire solution: GigE supporting PoE, Camera Link supporting PoCL, USB 3.0

I/O flexibility minimizes latency and jitter times, helping you achieve excellent accuracy in your applications

Widely applicable firmware features

Excellent value for money

USB3 Vision, GigE Vision and Camera Link standards provide superior stability and flexibility

Basler’s pylon camera software suite makes camera integration easy

ace L

As with the ace U, advances in firmware features have improved the ace L's performance.

In addition, ace L is also equipped with high-resolution Sony Pregius CMOS chips of 9 million and 12 million pixels,

and supports target surface sizes of more than 1 inch. In order to accommodate the larger chip,

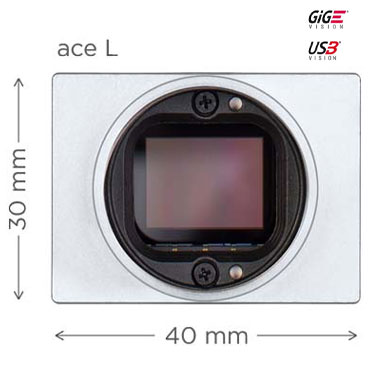

the camera housing of the ace L is slightly larger than other ace models, with a cross-sectional dimension of 40 mm x 30 mm.

Overview of ace L’s highlighted features:

9-megapixel and 12-megapixel Sony Pregius large-area CMOS chips (up to 1.1 inches): IMX253, IMX255, IMX267, IMX304

Excellent imaging quality with frame rates up to 40 fps

Contains high value-added functions (such as PGI image optimization function package, etc.)

Compatible with GigE Vision 2.0 and USB3 Vision standards

Camera model Horizontal/vertical resolution Photosensitive chip Frame rate Black and white/color interface

alA640-300gm640 px x 480 pxPYTHON 300340 fpsMonoGigE

alA640-300gc640 px x 480 pxPYTHON 300340 fpsColorGigE

alA800-200gm800 px x 600 pxPYTHON 500220 fpsMonoGigE

alA800-200gc800 px x 600 pxPYTHON 500220 fpsColorGigE

alA1920-40gm1920 px x 1200 pxIMX24940 fpsMonoGigE

alA1920-40gc1920 px x 1200 pxIMX24940 fpsColorGigE

alA2440-20gm2448 px x 2048 pxIMX26420 fpsMonoGigE

alA2440-20gc2448 px x 2048 pxIMX26420 fpsColorGigE

alA2500-10gc2590 px x 1942 pxMT9P03110 fpsColorGigE

alA2500-10gm2592 px x 1944 pxMT9P03110 fpsMonoGigE

alA3088-14gm3088 px x 2064 pxIMX17814 fpsMonoGigE

alA3088-14gc3088 px x 2064 pxIMX17814 fpsColorGigE

alA3800-8gc3840 px x 2748 pxMT9J0038 fpsColorGigE

acA4096-11gm4096 px x 2160 pxIMX26712 fpsMonoGigE

acA4096-11gc4096 px x 2160 pxIMX26712 fpsColorGigE

acA4096-30um4096 px x 2168 pxIMX26732 fpsMonoUSB 3.0

acA4096-30uc4096 px x 2168 pxIMX26732 fpsColorUSB 3.0

acA4096-40um4096 px x 2168 pxIMX25542 fpsMonoUSB 3.0

acA4096-40uc4096 px x 2168 pxIMX25542 fpsColorUSB 3.0

acA4112-8gm4096 px x 3000 pxIMX3048 fpsMonoGigE

acA4112-8gc4096 px x 3000 pxIMX3048 fpsColorGigE

acA4112-20um4096 px x 3000 pxIMX30423 fpsMonoUSB 3.0

acA4112-20uc4096 px x 3000 pxIMX30423 fpsColorUSB 3.0

acA4112-30um4096 px x 3000 pxIMX25330 fpsMonoUSB 3.0

acA4112-30uc4096 px x 3000 pxIMX25330 fpsColorUSB 3.0
